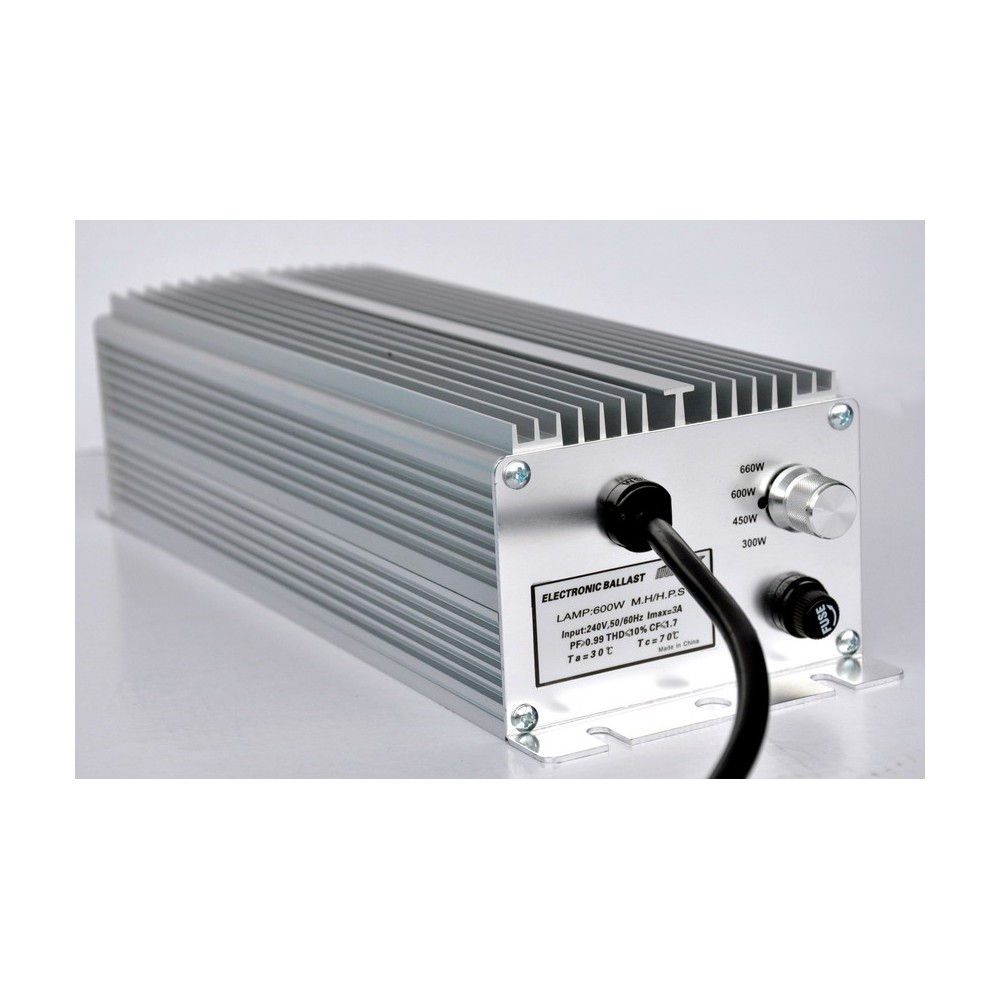

HPS/MH Dimmable Digital Ballast, 300-450-600-660W

The DIM-BAL ballast for 400W and 600W HPS/MH lamps is manufactured from the best components — it's a durable digital ballast with optimal output frequency, free from acoustic resonance, with low heat dissipation, protecting lamps from premature failure.

With it, lamp output can be increased by 10% — up to 450W and 660W respectively.

The DIM-BAL cooler operates at a higher frequency than comparable ballasts from other brands, so it stays cool.

The internal microprocessor ensures a high level of performance in every specific situation.

Unlike traditional electromagnetic ballasts, digital ballasts are more efficient, adjustable, generate less heat and provide stable output, regardless of input voltage. With a magnetic ballast, light loss occurs as the grid voltage may be less than optimal.

Features / Advantages

• Dimming for 400W and 600W HPS/MH lamps: 300/450/600/660W
• Very low heat generation
• Sealed housing
• High-frequency electronics
• Microprocessor control
• Driver efficiency at full power: 95–99%
• CE certification
• 2-year warranty

DIM-BAL 600W Technical Specifications

• Input voltage: 230V
• Power consumption at 600W: 645W
• Input current at 600W: 2.81A
• Power consumption at 660W: 705W
• Input current at 660W: 3.07A
• Power factor: ≥ 0.99
• THD: ≤ 10%
• Input frequency: 50/60Hz
• Maximum housing operating temperature: 80°C
• Minimum ambient operating temperature: –30 to 50°C
