DE HPS/MH/CMH Dimmable Digital Ballast, 600-630-660-750-1000W, Calitek

NOT SUITABLE for traditional single-ended lamps!

The Calitek 1000 W electronic/digital ballast is compatible with DOUBLE-ENDED (DE) CMH, MH, and HPS lamps, and its high operating frequency (100–160 kHz) allows the lamp to operate at constant power, extending its lifespan and increasing its luminous efficacy. It has a high power factor and high luminous efficiency, as well as a low total harmonic distortion (THD) coefficient.

This ballast is equipped with protection against ignition failure, open circuit, lamp end-of-life, and is not susceptible to short circuits.

How to use the Calitek electronic ballast?

• This ballast is capable of operating in a supply voltage range of 175 to 265 V.
• Make sure the lamp wattage and voltage match the ballast specifications.

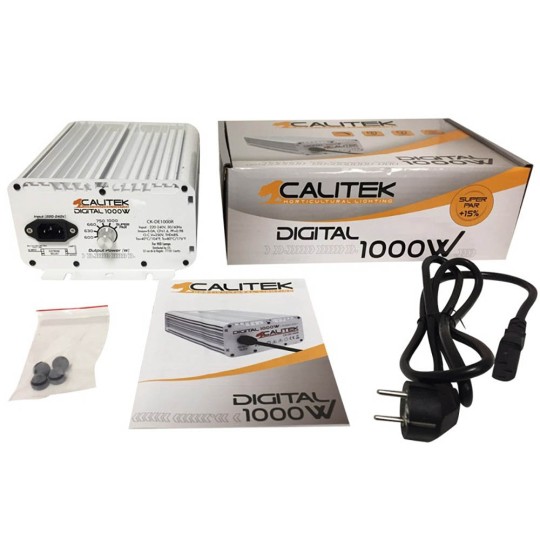

• For added safety, be sure to read the instructions included with the product.

For maximum performance, the installed lamp voltage should be between 200 V and 300 V.

Calitek 1000 W Ballast Specifications

• Lamps: CMH DE 630 and 1000 W, HPS DE 750 and 1000 W, MH DE 1000 W
• Input Power: 1150 W
• Input Voltage Range: 175–265 V
• Input Voltage: 220–240 V
• Input Current: 5.0 A
• Input Frequency: 50/60 Hz
• Maximum Output Power: 1100 W
• Output Frequency: 100 kHz

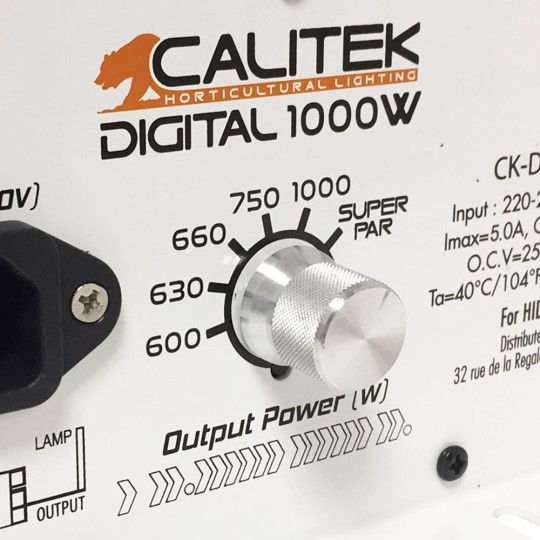

• Dimmer: 600 W — 630 W — 660 W — 750 W — 1000 W — Super PAR
• Operating Frequency: 100–160 kHz
• Isolation voltage: 3.5 kW
• Fault detection: yes
• Maximum case temperature: 80°C
• Room temperature: -25 to 40°C
• Operating humidity: 20–95%
• Protection class: IP23
